2916 Datasheet - Allegro MicroSystems

2916, DUAL FULL-BRIDGE PWM MOTOR DRIVER

2916 UDN2916B OUT 1A OUT 2A E2 SENSE 2 OUT 2B GROUND GROUND I 02 DUAL FULL-BRIDGE PWM MOTOR DRIVER VBB LOAD SUPPLY E1 SENSE 1 OUT 1B I 01 GROUND GROU.

2916_AllegroMicroSystems.pdf

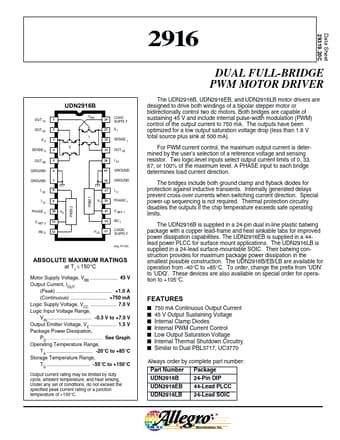

2916 Datasheet Preview — Preview of 2916 PDF

Datasheet Details

Part number:

2916

Manufacturer:

Allegro MicroSystems

File Size:

189.96 KB

Description:

DUAL FULL-BRIDGE PWM MOTOR DRIVER

Features

* I I I I I I I 750 mA Continuous Output Current 45 V Output Sustaining Voltage Internal Clamp Diodes Internal PWM Current Control Low Output Saturation Voltage Internal Thermal Shutdown Circuitry Similar to Dual PBL3717, UC3770 Always order by complete part number: Part Number Package UDN2916B 24-Pi

Applications

* The UDN2916LB is supplied in a 24-lead surface-mountable SOIC. Their batwing construction provides for maximum package power dissipation in the smallest possible construction. The UDN2916B/EB/LB are available for operation from -40°C to +85°C. To order, change the prefix from 'UDN' to 'UDQ'. These
