2919 DUAL FULL-BRIDGE PWM MOTOR DRIVER

2919 Description

A2919 Dual Full-Bridge PWM Motor Driver .
The A2919 motor driver is designed to drive both windings of a bipolar stepper motor or bidirectionally control two DC motors.

2919 Features

* ▪ 750 mA continuous output current ▪ 45 V output sustaining voltage ▪ Internal clamp diodes ▪ Internal PWM current control ▪ Low output saturation voltage ▪ Internal thermal shutdown circuitry ▪ Half- or quarter-step operation of bipolar stepper motors Package: 24-pin SOIC with exposed thermal tabs

📥 Download Datasheet

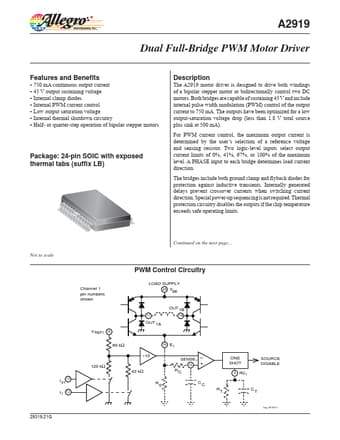

Preview of 2919 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2919
Manufacturer
Allegro MicroSystems
File Size
350.35 KB
Datasheet
2919_AllegroMicroSystems.pdf
Description
DUAL FULL-BRIDGE PWM MOTOR DRIVER
