A1171 Micropower Ultrasensitive Hall Effect Switch

A1171 Description

A1171 Micropower Ultrasensitive Hall Effect Switch .
The A1171 integrated circuit is an ultrasensitive, Hall effect switch with latched digital outputs and either unipolar or omnipolar magnetic actuation.

A1171 Features

* ▪ 1.65 to 3.5 V battery operation ▪ Low supply current ▪ High sensitivity, BOP typically 30 G (3.0 mT) ▪ Operation with either north or south pole ▪ Configurable unipolar or omnipolar magnetic sensing ▪ Complementary, push-pull outputs ▪ Chopper stabilized ▫ Superior temperature stability ▫ Extremel

A1171 Applications

* Package type EW(0.40 mm maximum height) offers a leadless surface mount solution. It is lead (Pb) free, with NiPdAu leadframe plating. Selection Guide Part Number Package Packing1 A1171EEWLT-P2 DFN/MLP 1.5×2 mm; 0.40 mm maximum height 1Contact Allegro™ for additional packing options. 3000 pie

📥 Download Datasheet

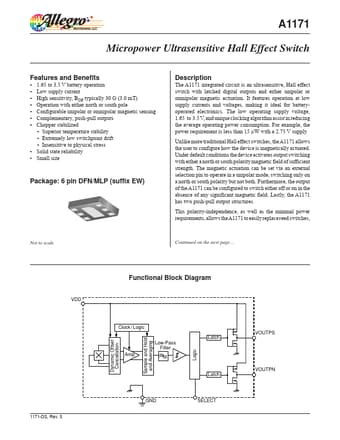

Preview of A1171 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1171
Manufacturer
Allegro MicroSystems
File Size
238.99 KB
Datasheet
A1171_AllegroMicroSystems.pdf
Description
Micropower Ultrasensitive Hall Effect Switch
