A1175-HBT Datasheet - SUNON

A1175-HBT Fan

171x151x51 mm 180-200 CFM Model P/N A1175-HBL A1175-HBT A2175-HBL A2175-HBT T.GN T.GN T.GN T.GN Frame : Aluminum alloy Bearing VAPO BALL Sleeve Rating Voltage (VAC) 115 115 220-240 220-240 Freq. (Hz) 50/60 50/60 50/60 50/60 Power Power Speed Current Consumption (AMP) (WATTS) (RPM) 0.59/0.48 39/36 2650/2950 0.59/0.48 39/36 2650/2950 0.28/0.24 39/36 2650/2950 0.28/0.24 39/36 2650/2950 Air Flow (CFM) 180/200 180/200 180/200 180/200 Static Pressure (Inch-H2O) 0.48/0.38 0.48/0.3.

A1175-HBT Datasheet (67.68 KB)

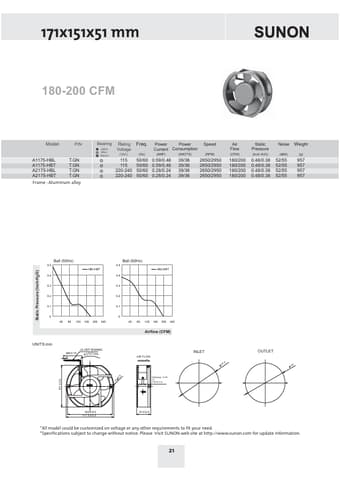

A1175-HBT Datasheet Preview — Preview of A1175-HBT PDF

Datasheet Details

Part number:

A1175-HBT

Manufacturer:

SUNON

File Size:

67.68 KB

Description:

Fan.
