A8178LLT - LOW-DROPOUT/ 7.7 V PREREGULATOR

Datasheet Summary

Features

  • ISO Pulse No. 1 2 3a 3b 4 5 6 7 Test Conditions (at TA = +25°C) VS = -100 V, RS = 10 Ω, tr = 1 µs, t d = 2 ms VS = 100 V, RS = 10 Ω, tr = 1 µ s, t d = 50 µ s, non-operating VS = -150 V, RS = 50 Ω, tr = 50 ns, td = 100 ns VS = 100 V, RS = 50 Ω, tr = 50 ns, td = 100 ns VS = -14 V, td = 20 s, non-operating VS = 86.5 V, RS = 0.5 Ω, tr = 5 ms, td = 400 ms VS = -300 V, RS = 30 Ω, tr = 60 µs, t d = 300 µ s VS = -80 V, RS = 10 Ω, tr = 5 ms, td = 100 ms Test Inductive Turn Off (Negative) Inductive Turn.

📥 Download Datasheet

Datasheet preview – A8178LLT

Datasheet Details

Part number A8178LLT
Manufacturer Allegro MicroSystems
File Size 49.93 KB
Description LOW-DROPOUT/ 7.7 V PREREGULATOR
Datasheet download datasheet A8178LLT Datasheet
Additional preview pages of the A8178LLT datasheet.

📁 Similar Datasheet

  • A817 - 4-PIN PHOTOTRANSISTOR OPTOCOUPLERS (Fairchild Semiconductor)
  • A817 - 2SA817 (Toshiba)
  • A8176 - LED DRIVER (AiT Semiconductor)
  • A81 - 20 TO 250 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
  • A81-1 - CASCADABLE AMPLIFIER (Tyco Electronics)
  • A81-2 - CASCADABLE AMPLIFIER (Tyco Electronics)
  • A81-3 - CASCADABLE AMPLIFIER (Tyco Electronics)
  • A81-A150X - 2-Electrode-Arrester (EPCOS)
  • A81-A230X - 2-Electrode-Arrester (EPCOS)
  • A81-A250X - 2-Electrode-Arrester (EPCOS)
Other Datasheets by Allegro MicroSystems
  • A8178LLR - LOW-DROPOUT/ 7.7 V PREREGULATOR
  • A8181SLB - LOW-DROPOUT/ 5 V REGULATOR . HIGH EFFICIENCY
  • A8182SL - LOW-DROPOUT/ 3 V REGULATOR . HIGH EFFICIENCY
  • A8183SLU - 3V REGULATOR
  • A8184SLT - LOW-DROPOUT/ 3 V REGULATOR . HIGH EFFICIENCY
  • A8186SLU - LOW-DROPOUT/ 3.3 V REGULATOR . HIGH EFFICIENCY
  • A8187SLT - LOW-DROPOUT/ 3.3 V REGULATOR . HIGH EFFICIENCY
  • A8188SL - LOW-DROPOUT REGULATORS . HIGH EFFICIENCY

Full PDF Text Transcription

Click to expand full text

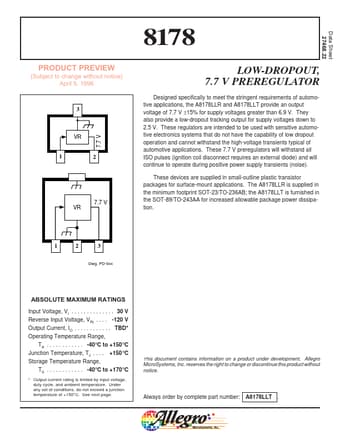

8178 PRODUCT PREVIEW (Subject to change without notice) April 5, 1996 Data Sheet 27468.22 LOW-DROPOUT, 7.7 V PREREGULATOR Designed specifically to meet the stringent requirements of automotive applications, the A8178LLR and A8178LLT provide an output voltage of 7.7 V ±15% for supply voltages greater than 6.9 V. They also provide a low-dropout tracking output for supply voltages down to 2.5 V. These regulators are intended to be used with sensitive automotive electronics systems that do not have the capability of low dropout operation and cannot withstand the high-voltage transients typical of automotive applications. These 7.
