A817 - 4-PIN PHOTOTRANSISTOR OPTOCOUPLERS

Datasheet Summary

Description

The H11AA814 Series consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a single silicon phototransistor in a 4-pin dual in-line package.

Features

Compact 4-pin package.
Current transfer ratio in selected groups: H11AA814: 20-300% H11A817: H11AA814A: 50-150% H11A817A: H11A617A: 40%-80% H11A817B: H11A617B: 63%-125% H11A817C: H11A617C: 100%-200% H11A817D: H11A617D: 160%-320%.
Minimum BVCEO of 70V guaranteed 50-600% 80-160% 130-260% 200-400% 300-600%.

Fairchild Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	A817
Manufacturer	Fairchild Semiconductor
File Size	514.47 KB
Description	4-PIN PHOTOTRANSISTOR OPTOCOUPLERS
Datasheet	A817 Datasheet

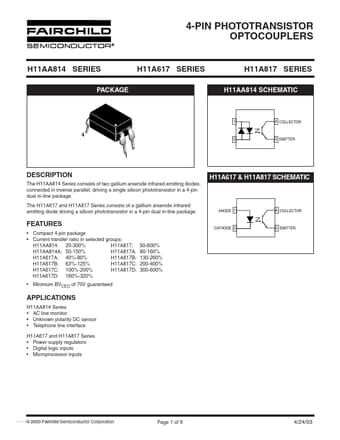

Additional preview pages of the A817 datasheet.

📁 Similar Datasheet

A817 - 2SA817 (Toshiba)
A8176 - LED DRIVER (AiT Semiconductor)
A8178LLR - LOW-DROPOUT/ 7.7 V PREREGULATOR (Allegro MicroSystems)
A8178LLT - LOW-DROPOUT/ 7.7 V PREREGULATOR (Allegro MicroSystems)
A81 - 20 TO 250 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
A81-1 - CASCADABLE AMPLIFIER (Tyco Electronics)
A81-2 - CASCADABLE AMPLIFIER (Tyco Electronics)
A81-3 - CASCADABLE AMPLIFIER (Tyco Electronics)
A81-A150X - 2-Electrode-Arrester (EPCOS)
A81-A230X - 2-Electrode-Arrester (EPCOS)

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

4-PIN PHOTOTRANSISTOR OPTOCOUPLERS H11AA814 SERIES PACKAGE H11A617 SERIES H11A817 SERIES H11AA814 SCHEMATIC 1 4 COLLECTOR 4 2 3 EMITTER 1 DESCRIPTION The H11AA814 Series consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a single silicon phototransistor in a 4-pin dual in-line package. The H11A617 and H11A817 Series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 4-pin dual in-line package.
