A8431

White LED Driver Constant Current Step-up Converter

A8431 Features

* Output voltage up to 32 V (OVP level) 2.5 V to 10 V input Drives up to 4 LEDs at 20 mA from a 2.5 V supply Drives up to 5 LEDs at 20 mA from a 3 V supply 1.2 MHz switching frequency 300 mA switch current limit 1 µA shutdown current OVP pin eliminates the need for an external Zener diode on the outpu

A8431 General Description

Pb-Free, Surface Mount 26185.301 Preliminary Data Sheet Subject to Change Without Notice April 5, 2005 White LED Driver Constant Current Step-up Converter Functional Block Diagram FB SW A8431 VIN VREF 1.25 V 95 mV A1 RC CC A2 R S Q Driver Σ OVP Ramp Generator OVP 1.2 MHz Oscillator EN Ena.

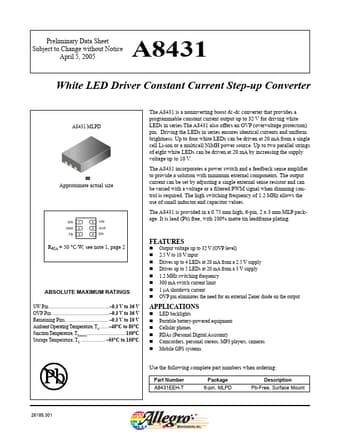

A8431 Datasheet (354.11 KB)

Preview of A8431 PDF

Datasheet Details

Part number:

A8431

Manufacturer:

Allegro MicroSystems

File Size:

354.11 KB

Description:

White led driver constant current step-up converter.
www.DataSheet4U.com Preliminary Data Sheet Subject to Change without Notice April 5, 2005 A8431 The A8431 is a noninverting boost dc-dc converter th.
