A8434, 6-Channel High Efficiency Charge Pump White LED Driver

www.DataSheet4U.com A8434 6-Channel High Efficiency Charge Pump White LED Driver .
The A8434 high efficiency charge pump ICs offer a simple, low-cost WLED (white LED) driver solution for driving up to six WLEDs in various application.

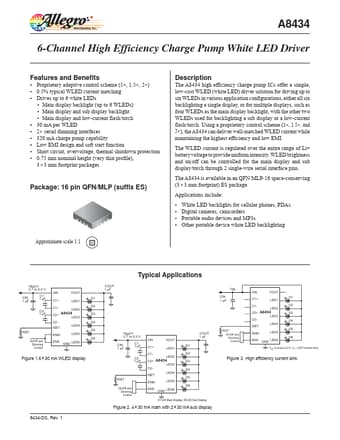

datasheet Preview Page 1 from Datasheet4u.com

A8434_AllegroMicroSystems.pdf

A8434 Datasheet Preview — Preview of A8434 PDF

Datasheet Details

Part number:

A8434

Manufacturer:

Allegro MicroSystems

File Size:

472.20 KB

Description:

6-Channel High Efficiency Charge Pump White LED Driver

Features

* ▪ Proprietary adaptive control scheme (1×, 1.5×, 2×) ▪ 0.5% typical WLED current matching ▪ Drives up to 6 white LEDs ▫ Main display backlight (up to 6 WLEDs) ▫ Main display and sub display backlight ▫ Main display and low-current flash/torch ▪ 30 mA per WLED ▪ 2× serial dimming interfaces ▪ 320 mA

Applications

* include: ▪ ▪ ▪ ▪ White LED backlights for cellular phones, PDAs Digital cameras, camcorders Portable audio devices and MP3s Other portable device white LED backlighting Package: 16 pin QFN/MLP (suffix ES) Approximate scale 1:1 Typical Applications VBATT 2.7 to 5.5 V VIN CIN 1 µF C1 1 µF C1+ C1
