ACS750SCA-100, ACS750xCA-100, Hall Effect-Based Linear Current Sensor

ACS750xCA-100 Fully Integrated, Hall Effect-Based Linear Current Sensor IC with High Voltage Isolation and a Low-Resistance Current Conductor .
The Allegro ACS75x family of current sensor ICs provides economical and precise solutions for current sensing in industrial, automotive, commercial, a.

ACS750xCA-100_AllegroMicroSystems.pdf

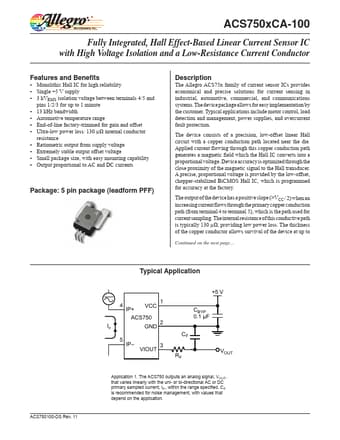

ACS750SCA-100 Datasheet Preview — This datasheet PDF includes multiple part numbers: ACS750SCA-100, ACS750xCA-100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ACS750SCA-100, ACS750xCA-100

Manufacturer:

Allegro MicroSystems

File Size:

349.79 KB

Description:

Hall Effect-Based Linear Current Sensor

Note:

This datasheet PDF includes multiple part numbers: ACS750SCA-100, ACS750xCA-100.
Please refer to the document for exact specifications by model.

Features

* ▪ Monolithic Hall IC for high reliability ▪ Single +5 V supply ▪ 3 kVRMS isolation voltage between terminals 4/5 and pins 1/2/3 for up to 1 minute ▪ 13 kHz bandwidth ▪ Automotive temperature range ▪ End-of-line factory-trimmed for gain and offset ▪ Ultra-low power loss: 130 μΩ internal conductor res

Applications

* include motor control, load detection and management, power supplies, and overcurrent fault protection. The device consists of a precision, low-offset linear Hall circuit with a copper conduction path located near the die. Applied current flowing through this copper conduction path generates a magne
