STD03N

Darlington Transistors

STD03N Features

* ▪ Built-in temperature compensation diodes ▪ High power (160 W) handling in a small package (TO-3P), for minimized heat sink requirements ▪ Built-in drivers and temperature compensation diodes, reducing external component count and simplifying circuit design ▪ NPN and PNP versions ▪ Emitter terminal

STD03N General Description

The STD03N and STD03P are enhanced Darlington transistors with built-in drivers and temperature compensation diode. Manufactured using the unique Sanken thin-wafer production technology, these devices achieve higher power levels through decreased thermal resistance, and can withstand higher voltages.

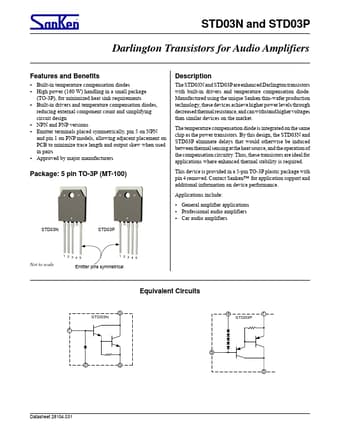

STD03N Datasheet (326.70 KB)

Preview of STD03N PDF

Datasheet Details

Part number:

STD03N

Manufacturer:

Allegro MicroSystems

File Size:

326.70 KB

Description:

Darlington transistors.
