STD03P, STD03N Datasheet - Allegro MicroSystems

STD03P Darlington Transistor

The STD03N and STD03P are enhanced Darlington transistors with built-in drivers and temperature compensation diode. Manufactured using the unique Sanken thin-wafer production technology, these devices achieve higher power levels through decreased thermal resistance, and can withstand higher voltages.

STD03P Features

* ▪ Built-in temperature compensation diodes ▪ High power (160 W) handling in a small package (TO-3P), for minimized heat sink requirements ▪ Built-in drivers and temperature compensation diodes, reducing external component count and simplifying circuit design ▪ NPN and PNP versions ▪ Emitter terminal

STD03N_AllegroMicroSystems.pdf

This datasheet PDF includes multiple part numbers: STD03P, STD03N. Please refer to the document for exact specifications by model.

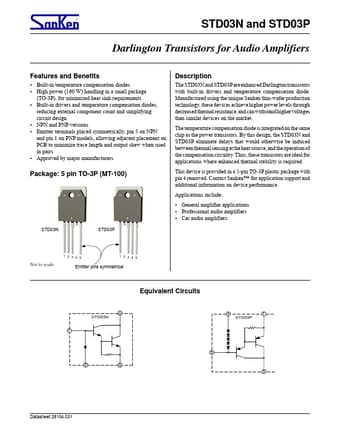

STD03P Datasheet Preview Page 2 STD03P Datasheet Preview Page 3

Datasheet Details

Part number:

STD03P, STD03N

Manufacturer:

Allegro MicroSystems

File Size:

326.70 KB

Description:

Darlington transistor.

Note:

This datasheet PDF includes multiple part numbers: STD03P, STD03N.
Please refer to the document for exact specifications by model.
