2580, 8-CHANNEL SOURCE DRIVERS

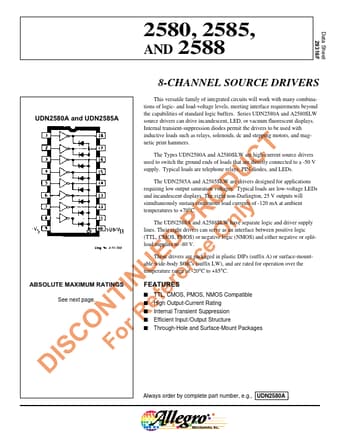

Data Sheet 29316F 2580, 2585, AND 2588 8-CHANNEL SOURCE DRIVERS This versatile family of integrated circuits will work with many combina- tions of.

datasheet Preview Page 1 from Datasheet4u.com

2580-Allegro.pdf

2580 Datasheet Preview — Preview of 2580 PDF

Datasheet Details

Part number:

2580

Manufacturer:

Allegro

File Size:

173.56 KB

Description:

8-CHANNEL SOURCE DRIVERS

Features

* s TTL, CMOS, PMOS, NMOS Compatible s High Output-Current Rating s Internal Transient Suppression s Efficient Input /Output Structure s Through-Hole and Surface-Mount Packages Always order by complete part number, e. g. , UDN2580A . 2580, 2585, AND 2588 8-CHANNEL SOURCE DRIVERS ABSOLUTE MAXIMUM RATI

Applications

* requiring low output saturation voltages. Typical loads are low-voltage LEDs and incandescent displays. The eight non-Darlington, 25 V outputs will simultaneously sustain continuous load currents of -120 mA at ambient temperatures to +70°C. The UDN2588A and A2588SLW have separate logic and driver su
