2588 8-CHANNEL SOURCE DRIVERS

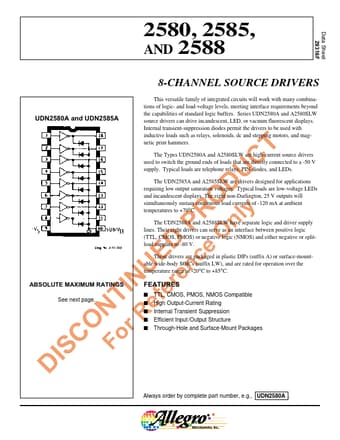

Data Sheet 29316F 2580, 2585, AND 2588 8-CHANNEL SOURCE DRIVERS This versatile family of integrated circuits will work with many combina- tions of logic- and load-voltage levels, meeting interface requirements beyond UDN2580A and UDN2585A the capabilities of standard logic buffers. Series UDN2580A and A2580SLW source drivers can drive incandescent, LED, or vacuum fluorescent displays. Internal transient-suppression diodes permit the drivers to be used with INUEDrenPcReOODnUlyCT ABSOLUTE .

2588 Features

* s TTL, CMOS, PMOS, NMOS Compatible s High Output-Current Rating s Internal Transient Suppression s Efficient Input /Output Structure s Through-Hole and Surface-Mount Packages Always order by complete part number, e.g., UDN2580A . 2580, 2585, AND 2588 8-CHANNEL SOURCE DRIVERS ABSOLUTE MAXIMUM RATI

2580-Allegro.pdf

This datasheet PDF includes multiple part numbers: 2588, 2580. Please refer to the document for exact specifications by model.
2588 Datasheet Preview Page 2 2588 Datasheet Preview Page 3

Datasheet Details

Part number:

2588, 2580

Manufacturer:

Allegro

File Size:

173.56 KB

Description:

8-channel source drivers.

Note:

This datasheet PDF includes multiple part numbers: 2588, 2580.
Please refer to the document for exact specifications by model.
