5812-F, BiMOS II 20-BIT SERIAL-INPUT / LATCHED SOURCE DRIVERS

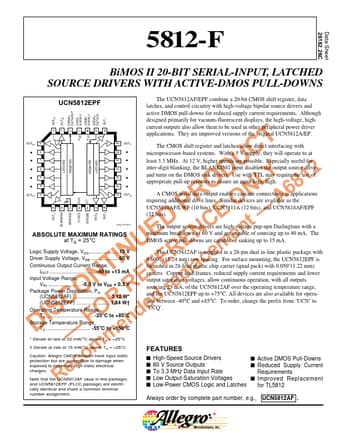

Data Sheet 26182.26C 5812-F BiMOS II 20-BIT SERIAL-INPUT, LATCHED SOURCE DRIVERS WITH ACTIVE-DMOS PULL-DOWNS UCN5812EPF The UCN5812AF/EPF combine .

datasheet Preview Page 1 from Datasheet4u.com

5812-F-Allegro.pdf

5812-F Datasheet Preview — Preview of 5812-F PDF

Datasheet Details

Part number:

5812-F

Manufacturer:

Allegro

File Size:

120.38 KB

Description:

BiMOS II 20-BIT SERIAL-INPUT / LATCHED SOURCE DRIVERS

Features

* s High-Speed Source Drivers s 60 V Source Outputs s To 3.3 MHz Data Input Rate s Low Output-Saturation Voltages s Active DMOS Pull-Downs s Reduced Supply Current Requirements s Improved Replacement and UCN5812EPF (PLCC package) are electri- s Low-Power CMOS Logic and Latches for TL5812 cally ide

Applications

* They are improved versions of the original UCN5812A/EP. The CMOS shift register and latches allow direct interfacing with microprocessor-based systems. With a 5 V supply, they will operate to at least 3.3 MHz. At 12 V, higher speeds are possible. Especially useful for inter-digit blanking, the BLAN
