5818-F - LATCHED SOURCE DRIVERS

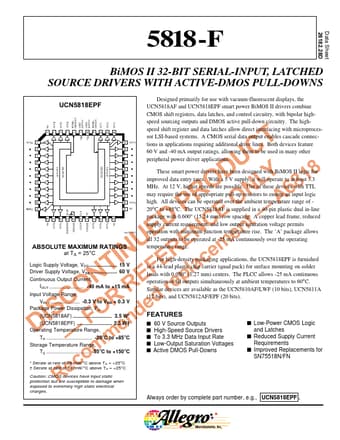

Data Sheet 26182.28D 5818-F BiMOS II 32-BIT SERIAL-INPUT, LATCHED SOURCE DRIVERS WITH ACTIVE-DMOS PULL-DOWNS UCN5818EPF Designed primarily for use with vacuum-fluorescent displays, the UCN5818AF and UCN5818EPF smart power BiMOS II drivers combine CMOS shift registers, data latches, and control circuitry, with bipolar high- SERIAL DATA OUT LOAD SUPPLY LOGIC SUPPLY SERIAL DATA IN 40 OUT3 41 OUT2 42 OUT1 3 OUT32 4 OUT31 5 OUT30 speed sourcing outputs and DMOS active pull-down circuitry

5818-F Features

* s 60 V Source Outputs s High-Speed Source Drivers s To 3.3 MHz Data Input Rate s Low-Output Saturation Voltages s Active DMOS Pull-Downs s Low-Power CMOS Logic and Latches s Reduced Supply Current Requirements s Improved Replacements for SN75518N/FN exposed to extremely high static electrical cha
