A1642 Two-Wire True Zero-Speed Miniature Differential Peak-Detecting Sensor

A1642 Description

A1642 Two-Wire True Zero-Speed Miniature Differential Peak-Detecting Sensor IC with Continuous Calibration .
The A1642 is an optimized Hall-effect sensing integrated circuit that provides a user-friendly solution for true zero-speed digital ring-magnet sensin.

A1642 Features

* ▪ Running mode calibration for continuous optimization ▪ Single chip IC for high reliability ▪ Internal current regulator for 2-wire operation ▪ Precise duty cycle signal over operating temperature range ▪ Large operating air gaps ▪ Automatic Gain Control (AGC) for air gap independent switch points

A1642 Applications

* This small package can be easily assembled and used in conjunction with a wide variety of target shapes and sizes. The integrated circuit incorporates dual Hall-effect elements and signal processing that switches in response to differential magnetic signals created by ring magnet poles. The circuit

📥 Download Datasheet

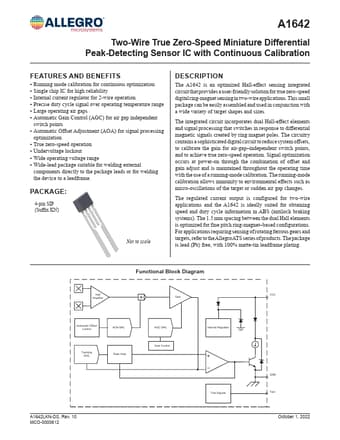

Preview of A1642 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1642
Manufacturer
Allegro
File Size
846.70 KB
Datasheet
A1642-Allegro.pdf
Description
Two-Wire True Zero-Speed Miniature Differential Peak-Detecting Sensor
