A16450 - Universal Asynchronous Receiver/Transmitter

Product Overview

Altera Corporation

Datasheet Details

Part number	A16450
Manufacturer	Altera Corporation
File Size	298.52 KB
Description	Universal Asynchronous Receiver/Transmitter
Datasheet	A16450 Datasheet

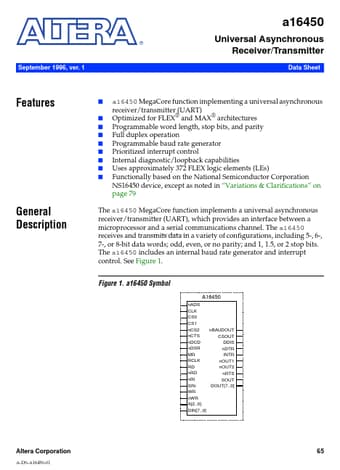

Additional preview pages of the A16450 datasheet.

Product details

Description

The a16450 MegaCore function implements a universal asynchronous receiver/transmitter (UART), which provides an interface between a microprocessor and a serial communications channel.

Features

s s s s s s s s s a16450 MegaCore function implementing a universal asynchronous receiver/transmitter (UART) Optimized for FLEX® and MAX® architectures Programmable word length, stop bits, and parity Full duplex operation Programmable baud rate generator Prioritized interrupt control Internal diagnostic/loopback capabilities Uses approximately 372 FLEX logic elements (LEs) Functionally based on the National Semiconductor Corporation NS16450 device, except as noted in “Variations & Clarificatio.
