A17502

Dual Output Narrow Pitch Differential Speed and Direction Sensor

A17502 Features

* Ideally suited for xEV asynchronous electric motor applications with narrow-pitch targets

* High-speed switching bandwidth up to 40 kHz

* Two independent output channels for either speed and direction or AB outputs in quadrature

* ASIL B(D) compliant (ISO 26262) wit

A17502 General Description

The A17502 is a single IC solution designed for rotational position sensing of a ring-magnet target found in automotive and industrial electric-motor applications (often with specific application and safety requirements). Three Hall elements are incorporated to create two independent differential ch.

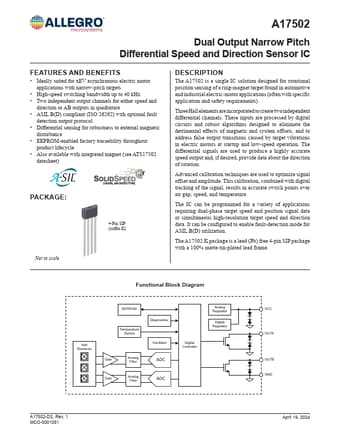

A17502 Datasheet (2.21 MB)

Preview of A17502 PDF

Datasheet Details

Part number:

A17502

Manufacturer:

Allegro

File Size:

2.21 MB

Description:

Dual output narrow pitch differential speed and direction sensor.
