A19200 - ASIL-Compliant Wheel Speed Sensor

Allegro

📥 Download Datasheet

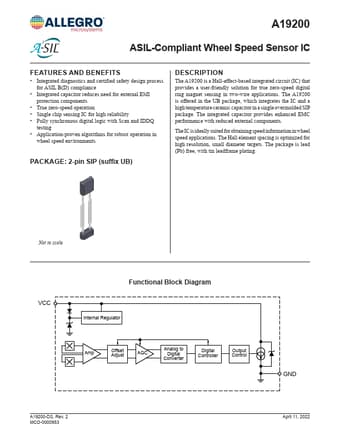

A19200 Datasheet Preview — Preview of A19200 PDF

Datasheet Details

Part number: A19200
Manufacturer: Allegro
File Size: 0.96 MB
Datasheet: A19200-Allegro.pdf
Description: ASIL-Compliant Wheel Speed Sensor

A19200 Product details

Description

The A19200 is a Hall-effect-based integrated circuit (IC) that provides a user-friendly solution for true zero-speed digital ring magnet sensing in two-wire applications.

Features

Integrated diagnostics and certified safety design process for ASIL B(D) compliance.
Integrated capacitor reduces need for external EMI protection components.
True zero-speed operation.
Single chip sensing IC for high reliability.
Fully synchronous digital logic with Scan and IDDQ testing.
Application-proven algorithms for robust operation in wheel speed environments.
