A19300 - ASIL-Compliant Hall-Effect Wheel Speed Sensor

Allegro

📥 Download Datasheet

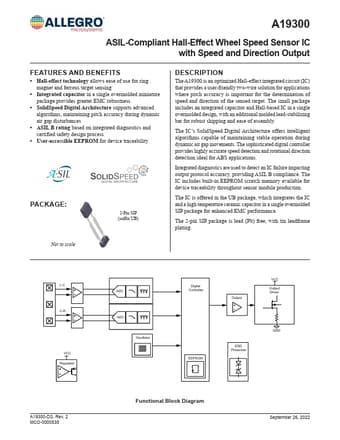

A19300 Datasheet Preview — Preview of A19300 PDF

Datasheet Details

Part number: A19300
Manufacturer: Allegro
File Size: 1.27 MB
Datasheet: A19300-Allegro.pdf
Description: ASIL-Compliant Hall-Effect Wheel Speed Sensor

A19300 Product details

Description

The A19300 is an optimized Hall-effect integrated circuit (IC) that provides a user-friendly two-wire solution for applications where pitch accuracy is important for the determination of speed and direction of the sensed target.

Features

Hall-effect technology allows ease of use for ring magnet and ferrous target sensing.
Integrated capacitor in a single overmolded miniature package provides greater EMC robustness.
SolidSpeed Digital Architecture supports advanced algorithms, maintaining pitch accuracy during dynamic air gap disturbances.
ASIL B rating based on integrated diagnostics and certified safety design process.
User-accessible EEPROM for device traceability.
