A19360 - High-Resolution GMR Wheel Speed/Distance Sensor

Allegro

📥 Download Datasheet

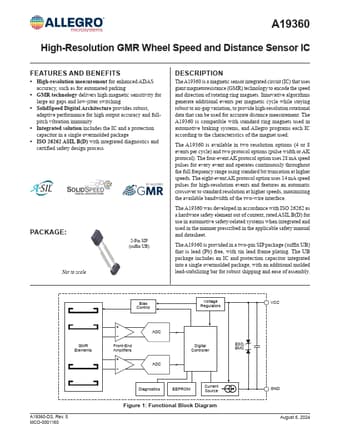

A19360 Datasheet Preview — Preview of A19360 PDF

Datasheet Details

Part number: A19360
Manufacturer: Allegro
File Size: 1.85 MB
Datasheet: A19360-Allegro.pdf
Description: High-Resolution GMR Wheel Speed/Distance Sensor

A19360 Product details

Description

The A19360 is a magnetic sensor integrated circuit (IC) that uses giant magnetoresistance (GMR) technology to encode the speed and direction of rotating ring magnets.

Features

High-resolution measurement for enhanced ADAS accuracy, such as for automated parking.
GMR technology delivers high magnetic sensitivity for large air gaps and low-jitter switching.
SolidSpeed Digital Architecture provides robust, adaptive performance for high output accuracy and fullpitch vibration immunity.
Integrated solution includes the IC and a protection capacitor in a single overmolded package.
ISO 26262 ASIL B(D) with integrated diagnostics.
