A33003

Precision Angle Sensor

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Microchip Technology Inc MA330031-2 MOD PIM DSPIC33EP256MC506 EXT OA DigiKey 4 1 units
$31.61

A33003 Datasheet (3.95 MB)

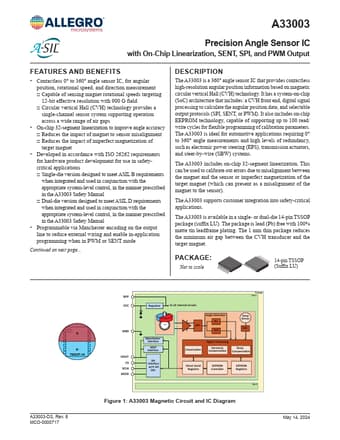

Preview of A33003 PDF Datasheet

Datasheet Details

Part number:

A33003

Manufacturer:

Allegro

File Size:

3.95 MB

Description:

Precision angle sensor

A33003 Features

* Contactless 0° to 360° angle sensor IC, for angular position, rotational speed, and direction measurement

* Capable of sensing magnet rotational speeds targeting 12-bit effective resolution with 900 G field

* Circular vertical Hall (CVH) technology provides a single-channel

A33003 General Description

The A33003 is a 360° angle sensor IC that provides contactless high-resolution angular position information based on magnetic circular vertical Hall (CVH) technology. It has a system-on-chip (SoC) architecture that includes: a CVH front end, digital signal processing to calculate the angular positio.
