A33230 Datasheet - Allegro

3D Hall-Effect Sensor

A33230 Features

* 5 V supply voltage

* Tiny SOT23-W

* Pre-programmed axis combinations: XY, XZ, or YZ

* Ratiometric outputs

* Low output current

* Two selectable sensitivities

* AEC-Q100 grade 0 automotive qualified

* Quality managed (QM) PACKAGE: 5-Pi

A33230 General Description

The A33230 is an integrated circuit (IC) 3D Hall-effect sensor IC intended for position sensing of magnet targets. The IC incorporates vertical and planar Hall-effect elements with sensing axes that are orthogonal to one another, providing 90° phase separation. This phase separation is inherently in.

A33230 Datasheet (2.17 MB)

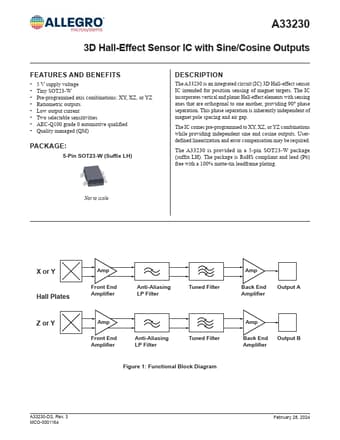

A33230 Datasheet Preview — Preview of A33230 PDF

Datasheet Details

Part number:

A33230

Manufacturer:

Allegro

File Size:

2.17 MB

Description:

3d hall-effect sensor.
