A6276

16-Bit Serial Input Constant-Current Latched LED Driver

A6276 Features

* ▪ Up to 90 mA constant-current outputs ▪ Undervoltage lockout ▪ Low-power CMOS logic and latches ▪ High data input rate ▪ Functional replacement for TB62706BN/BF Packages 24-pin DIP (A package) 24-pin SOICW (LW package) Not to scale Description The A6276 is specifically designed for LED-display app

A6276 General Description

The A6276 is specifically designed for LED-display applications. Each BiCMOS device includes a 16-bit CMOS shift register, accompanying data latches, and 16 NPN constantcurrent sink drivers. Except for package style and allowable package power dissipation, the device options are identical. The CMOS .

A6276 Datasheet (525.57 KB)

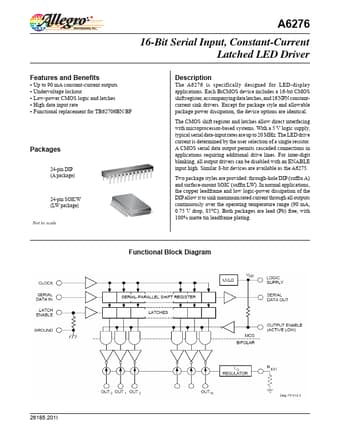

Preview of A6276 PDF

Datasheet Details

Part number:

A6276

Manufacturer:

Allegro

File Size:

525.57 KB

Description:

16-bit serial input constant-current latched led driver.
