A89332

Three-Phase Sensorless Fan Controller

A89332 Features

* Closed-loop speed control

* Power loss brake

* Fault mode brake

* Configurable rotor detect (RD) or frequency generator (FG) output

* Speed curve configuration via EEPROM

* I2C serial port

* Sinusoidal modulation for reduced audible noise and

A89332 General Description

The A89332 three-phase motor controller incorporates a sensorless sinusoidal drive to minimize vibration for highpower, high-speed server fans. Sensorless control eliminates the requirement for Hall sensors for server fan applications. A flexible, closed-loop speed control system is integrated into .

A89332 Datasheet (362.23 KB)

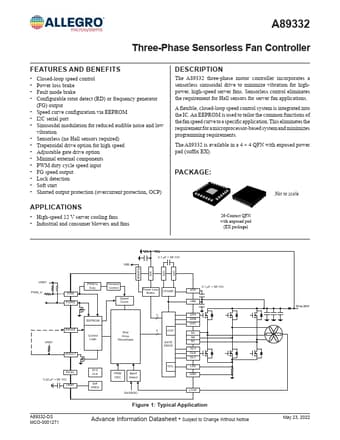

Preview of A89332 PDF

Datasheet Details

Part number:

A89332

Manufacturer:

Allegro

File Size:

362.23 KB

Description:

Three-phase sensorless fan controller.
