ACS725LMC - Automotive-Grade High Accuracy Hall-Effect-Based Current Sensor

Product Overview

Allegro

Datasheet Details

Part number	ACS725LMC
Manufacturer	Allegro
File Size	1.55 MB
Description	Automotive-Grade High Accuracy Hall-Effect-Based Current Sensor
Datasheet	ACS725LMC Datasheet
Note	This datasheet PDF includes multiple part numbers: ACS725LMC, ACS724LMC. Please refer to the document for exact specifications by model.

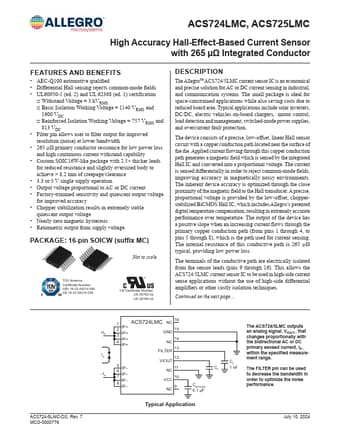

Additional preview pages of the ACS725LMC datasheet.

Product details

Description

The Allegro™ ACS724/5LMC current sensor IC is an economical and precise solution for AC or DC current sensing in industrial, and communication systems.

Features

AEC-Q100 automotive qualified.
Differential Hall sensing rejects common-mode fields.
UL60950-1 (ed. 2) and UL 62368 (ed. 1) certification.
Withstand Voltage = 5 kVRMS.
Basic Isolation Working Voltage = 1140 VRMS and 1600 VDC.
Reinforced Isolation Working Voltage = 757 VRMS and 813 VDC.
Filter pin allows user to filter output for improved resolution (noise) at lower bandwidth.
265 µΩ primary conductor resistance for low powe.
