ACS725LMA - Hall-Effect-Based Current Sensor

ACS725LMA Description

ACS725LMA Automotive-Grade, High-Accuracy, Hall-Effect-Based Current Sensor IC with Common-Mode Field Rejection in High-Isolation SOIC16 Package FEAT.
The Allegro™ ACS725LMA current sensor IC is an economical and precise solution for AC or DC current sensing in automotive, industrial, commercial, and.

ACS725LMA Features

* AEC-Q100 automotive qualified
* Differential Hall sensing rejects common-mode fields
* Patented integrated digital temperature compensation circuitry allows for near closed loop accuracy over temperature in an open loop sensor
* UL60950-1 (ed. 2) certification

ACS725LMA Applications

* 3.0 to 3.6 V single supply operation
* Output voltage proportional to AC or DC current
* Factory-trimmed sensitivity and quiescent output voltage for improved accuracy Continued on the next page… TÜV America Certificate Number: U8V 16 03 54214 040 CB 16 03 54214 039 CB Ce

📥 Download Datasheet

Preview of ACS725LMA PDF

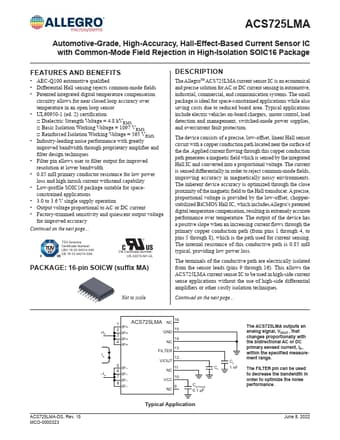

datasheet Preview Page 2 datasheet Preview Page 3
