AMT49406 Datasheet - Allegro

50V Code-Free FOC BLDC Motor Controller

AMT49406 Features

* Code-free sensorless field-oriented control (FOC)

* Proprietary non-reverse fast startup

* Soft-On Soft-Off (SOSO) for quiet operation

* Analog / PWM / Clock mode speed control

* Closed-loop speed control

* Configurable current limit

* Windmi

AMT49406 General Description

The AMT49406 is a 3-phase, sensorless, brushless DC (BLDC) motor driver (gate driver) which can operate from 5.5 to 50 V. A field-oriented control (FOC) algorithm is fully integrated to achieve the best efficiency and acoustic noise performance. The device optimizes the motor startup performance in .

AMT49406 Datasheet (1.31 MB)

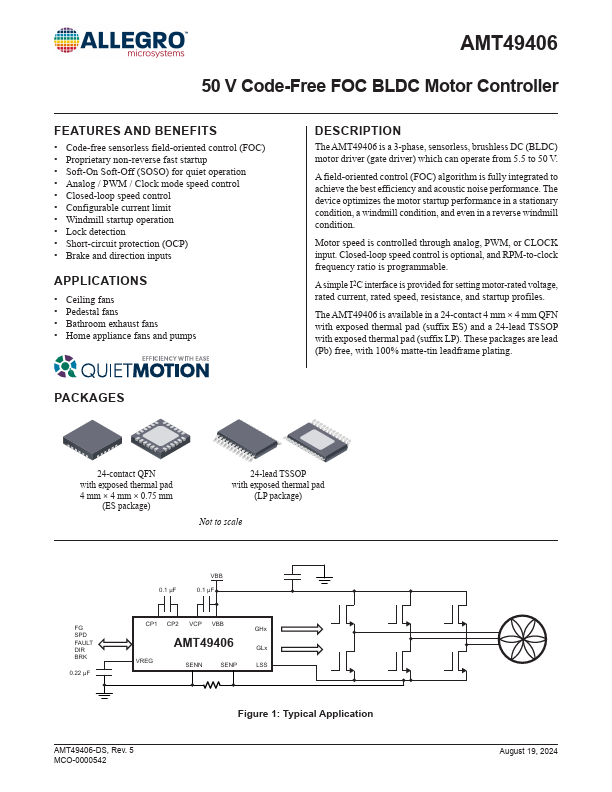

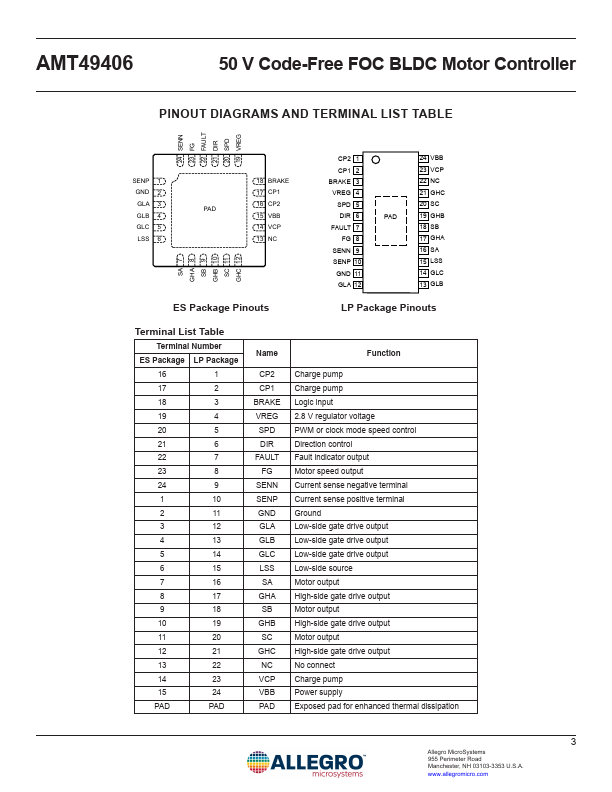

AMT49406 Datasheet Preview — Preview of AMT49406 PDF

Datasheet Details

Part number:

AMT49406

Manufacturer:

Allegro

File Size:

1.31 MB

Description:

50v code-free foc bldc motor controller.
