APS11760, APS11700 - Micropower Vertical and Planar Hall-Effect Switches

Allegro

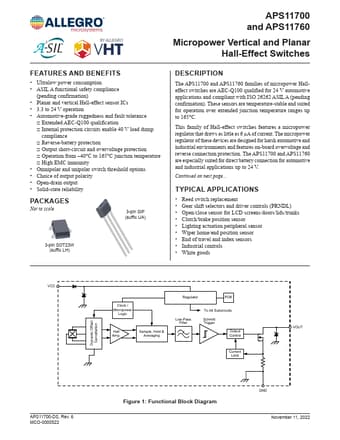

APS11760 Datasheet Preview — This datasheet PDF includes multiple part numbers: APS11760, APS11700. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	APS11760, APS11700
Manufacturer	Allegro
File Size	1.59 MB
Description	Micropower Vertical and Planar Hall-Effect Switches
Datasheet	APS11700-Allegro.pdf
Note	This datasheet PDF includes multiple part numbers: APS11760, APS11700. Please refer to the document for exact specifications by model.

APS11760 Product details

Description

The APS11700 and APS11760 families of micropower Halleffect switches are AEC-Q100 qualified for 24 V automotive applications and compliant with ISO 26262 ASIL A (pending confirmation).

Features

Ultralow power consumption.
ASIL A functional safety compliance (pending confirmation).
Planar and vertical Hall-effect sensor ICs.
3.3 to 24 V operation.
Automotive-grade ruggedness and fault tolerance.
Extended AEC-Q100 qualification.
Internal protection circuits enable 40 V load dump compliance.
Reverse-battery protection.
Output short-circuit and overvoltage protection.
Operation from.
40°C to.
