APS12400

Two-Wire Hall-Effect Latch

APS12400 Features

* ASIL A functional safety

* Developed in accordance with ISO 26262

* Internal diagnostics and a defined Safe State

* A2-SIL™ documentation available

* Multiple product options

* Magnetic polarity, switch points, and hysteresis

* Temperature co

APS12400 General Description

APS12400 devices are two-wire planar Hall-effect sensor integrated circuits (ICs) developed in accordance with ISO 26262. They include internal diagnostics and support a functional safety level of ASIL A. The enhanced two-wire current-mode interface provides interconnect open/short diagnostics and a.

APS12400 Datasheet (1.50 MB)

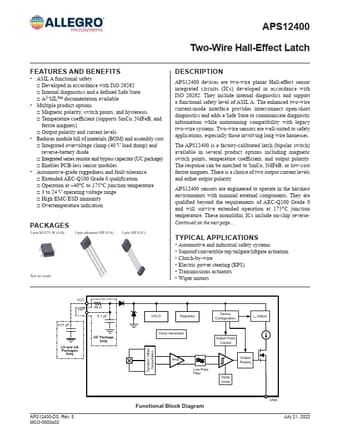

Preview of APS12400 PDF

Datasheet Details

Part number:

APS12400

Manufacturer:

Allegro

File Size:

1.50 MB

Description:

Two-wire hall-effect latch.
