UDN2878W Datasheet, Switches, Allegro

UDN2878W Features

• Switches I Output Currents to 4 A I Output Voltages to 80 V I Loads to 1280 W I TTL, DTL, or CMOS Compatible Inputs I Internal Clamp Diodes I Plastic Single In-Line Package I Heat-Sink Tab Alwa

PDF File Details

Part number:

UDN2878W

Manufacturer:

Allegro

File Size:

222.30kb

Download:

📄 Datasheet

Description:

Quad high-current darlington switches.

UDN2878W Application

• Applications requiring load currents of 3 A or less. These less expensive devices are identical to the basic parts except for the maximum allowable

TAGS

UDN2878W

Allegro

📁 Related Datasheet

UDN2878 - QUAD HIGH-CURRENT DARLINGTON SWITCHES (Allegro)

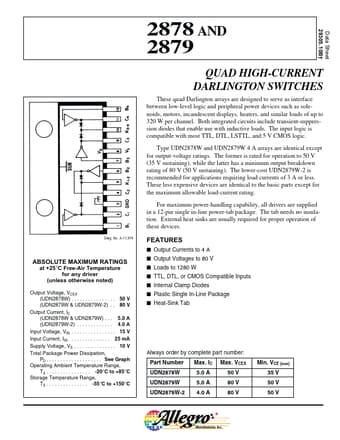

Data Sheet 29305.10B† 2878 AND 2879 Dwg. No. A-11,974 ABSOLUTE MAXIMUM RATINGS at +25°C Free-Air Temperature for any driver (unless otherwise noted).
