UDN2879W Datasheet, switches equivalent, Allegro

UDN2879W Features

  • Switches I Output Currents to 4 A I Output Voltages to 80 V I Loads to 1280 W I TTL, DTL, or CMOS Compatible Inputs I Internal Clamp Diodes I Plastic Single In-Line Package I Heat-Sink Tab Alwa

PDF File Details

Part number:

UDN2879W

Manufacturer:

Allegro

File Size:

222.30kb

Download:

📄 Datasheet

Description:

Quad high-current darlington switches.

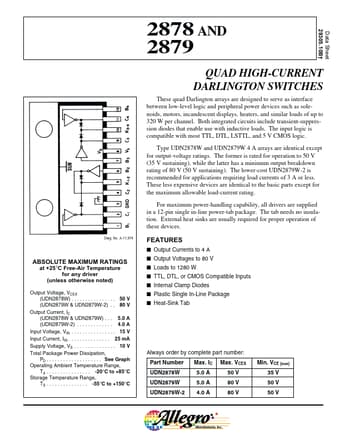

Datasheet Preview: UDN2879W 📥 Download PDF (222.30kb)
Page 2 of UDN2879W Page 3 of UDN2879W

UDN2879W Application

  • Applications requiring load currents of 3 A or less. These less expensive devices are identical to the basic parts except for the maximum allowable
