ASM3P2184A

LCD Panel EMI Reduction

ASM3P2184A Features

* FCC approved method of EMI attenuation. Provides up to 15dB EMI reduction. Generates a 1X low EMI spread spectrum clock of the input frequency. Input frequency range: 6MHz to 70 MHz. Internal loop filter minimizes external compo

ASM3P2184A General Description

The ASM3P2184A is a versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 6MHz to 70MHz. (Refer Input Frequency and Modulation Rate Table). The ASM3P2184A can generate an EMI reduced clock from an OSC or a system generated clock. The AS.

ASM3P2184A Datasheet (394.33 KB)

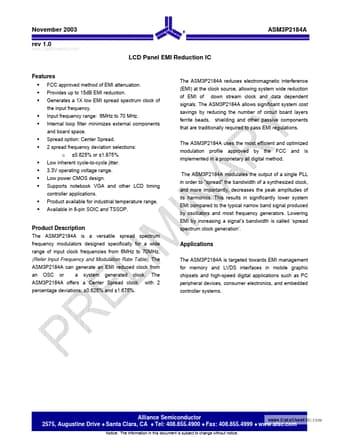

Preview of ASM3P2184A PDF

Datasheet Details

Part number:

ASM3P2184A

Manufacturer:

Alliance Semiconductor Corporation

File Size:

394.33 KB

Description:

Lcd panel emi reduction.
