ASM3P2183A

EMI Reduction

ASM3P2183A Features

* FCC approved method of EMI attenuation. Provides up to 15dB EMI reduction. Generates a 1X low EMI spread spectrum clock of the input frequency. Input frequency range: 6MHz to 103MHz. Internal loop filter minimizes external components and board space. Selectable spread options: Down and Center Spread

ASM3P2183A General Description

The ASM3P2183 is a versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 6MHz to 103MHz. (Refer Input Frequency and Modulation Rate Table). The ASM3P2183A can generate an EMI reduced clock from an OSC or a system generated clock. The AS.

ASM3P2183A Datasheet (213.36 KB)

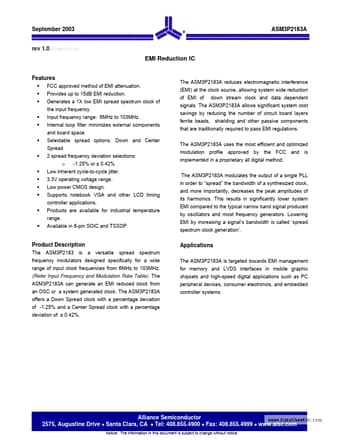

Preview of ASM3P2183A PDF

Datasheet Details

Part number:

ASM3P2183A

Manufacturer:

Alliance Semiconductor Corporation

File Size:

213.36 KB

Description:

Emi reduction.
