LRC30 - Low Resistance Chip Inductors

Product Overview

Allied Components International

Part number	LRC30
Manufacturer	Allied Components International
File Size	747.31 KB
Description	Low Resistance Chip Inductors
Datasheet	LRC30 Datasheet

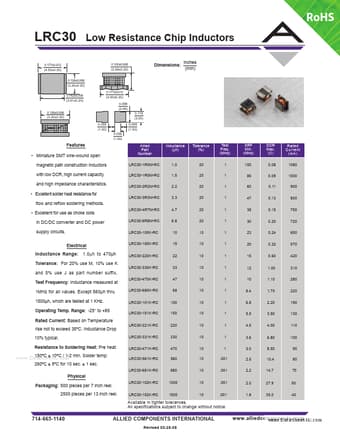

Additional preview pages of the LRC30 datasheet.

Miniature SMT wire-wound open magnetic path construction inductors with low DCR, high current capacity and high impedance characteristics.
Excellent solder heat resistance for flow and reflow soldering methods.
Excellent for use as choke coils in DC/DC converter and DC power supply circuits. Electrical Inductance Range: 1.0 µ h to 470µh Tolerance: For 20% use M, 10% use K and 5% use J as part number suffix. Test Frequency: Inductance measured at 1MHz for all values.
