LRC40 Datasheet - Allied Components International

LRC40 Low Resistance Chip Inductors

RoHS Low Resistance Chip Inductors Dimensions: Inches (mm) 0.224±0.012 (5.69±0.30) 0.197±0.012 (5.00±0.30) LRC40 0.185±0.012 (4.70±0.30) 0.197±0.012 (5.00±0.30) 0.197±0.012 (5.00±0.30) 0.224±0.012 (5.69±0.30) 0.138 (3.51) 0.079 (2.01) 0.118 (3.00) Allied Part Number LRC40-R12M-RC LRC40-R27M-RC LRC40-R47M-RC LRC40-1R0M-RC LRC40-1R5M-RC LRC40-2R2M-RC LRC40-3R3M-RC LRC40-4R7M-RC LRC40-6R8M-RC LRC40-100K-RC LRC40-150K-RC LRC40-220K-RC LRC40-330K-RC LRC40-470K-RC LRC40-680K-RC LRC40-101K-RC LR.

LRC40 Features

* SMT chokes which have low DCR, high current capacity and high inductance values.

* Excellent for use as choke coils in DC/ DC converts and DC power supply circuits.

* Open magnetic path construction.

* Inductance values up to 1000µh.

* Excellent solder heat

LRC40 Datasheet (781.08 KB)

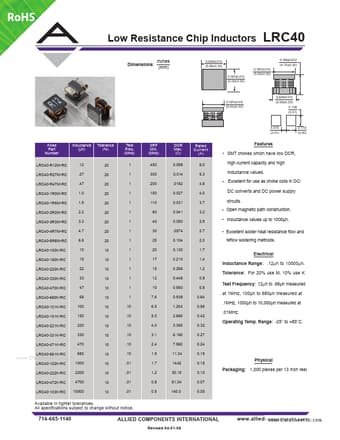

Preview of LRC40 PDF

Datasheet Details

Part number:

LRC40

Manufacturer:

Allied Components International

File Size:

781.08 KB

Description:

Low resistance chip inductors.
