PCHC25

Power Chip High Current Inductors

PCHC25 Features

* Designed for high power DC to DC applications

* Saturation current up to 7.7A

* Extremely low DCR

* Rugged self leaded construction

* Provided in tape and reel packaging for pick and place assembly Allied Part Number PCHC25-R56M-RC Inductance (µh) 0.56 To

PCHC25 Datasheet (272.18 KB)

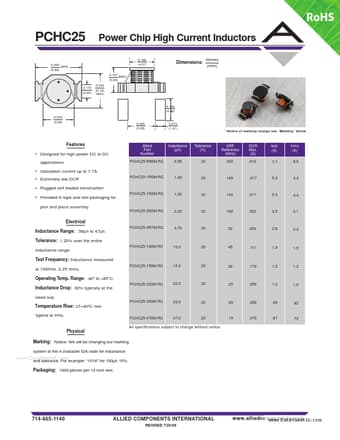

Preview of PCHC25 PDF

Datasheet Details

Part number:

PCHC25

Manufacturer:

Allied Components International

File Size:

272.18 KB

Description:

Power chip high current inductors.
RoHS PCHC25 0.350 MAX. (8.89) Power Chip High Current Inductors 0.180 (4.57) 0.197 MAX. (5.00) Dimensions: Inches (mm) 0.115 (2.92) 0.240 (6.10).
