PCHC40

Power Chip High Current Inductors

PCHC40 Features

* Designed for high current, low voltage DC to DC converter applications

* Current ratings up to 16Arms and .33 20 20.0 16.0 PCHC40-R68M-RC .68 20 200 .005 13.0 12.0 saturation current up to 20A

* Extremely low DCR

* Provided in tape and reel packaging for

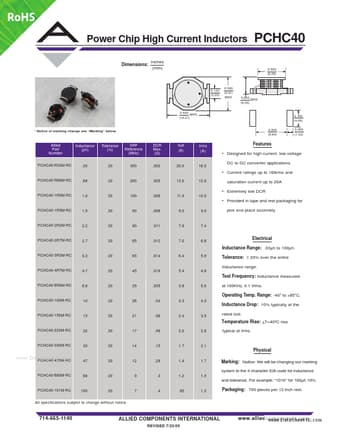

PCHC40 Datasheet (278.33 KB)

Preview of PCHC40 PDF

Datasheet Details

Part number:

PCHC40

Manufacturer:

Allied Components International

File Size:

278.33 KB

Description:

Power chip high current inductors.
RoHS Power Chip High Current Inductors Dimensions: Inches (mm) PCHC40 0.330 (8.38) 0.120 (3.05) 0.390 (9.91) MAX. 0.250 MAX. (6.35) 0.520 MAX. (1.
