AO3401A - 30V P-Channel MOSFET

General Description

The AO3401A uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation gate voltages as low as 2.5V.

This device is suitable for use as a load switch or other general applications.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO3401A P-Channel MOSFET VBsemi
AO3401 P-Channel MOSFET VBsemi
AO3401 P-Channel MOSFET HOTTECH
AO3401 P-Channel MOSFET Kexin
AO3401 30V P-Channel MOSFET JinYu

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AO3401 30V P-Channel MOSFET
AO3401L P-Channel MOSFET
AO3400 30V N-Channel MOSFET
AO3400A 30V N-Channel MOSFET
AO3402 30V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

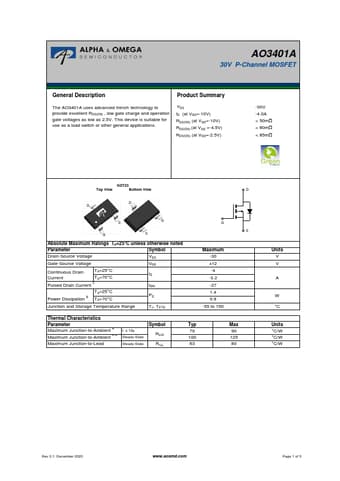

AO3401A 30V P-Channel MOSFET General Description Product Summary The AO3401A uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation gate voltages as low as 2.5V. This device is suitable for use as a load switch or other general applications. VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS =-4.5V) RDS(ON) (at VGS=-2.5V) -30V -4.0A < 50mW < 60mW < 85mW SOT23 Top View Bottom View D D D S G G S G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TA=25°C TA=70°C ID Pulsed Drain Current C IDM TA=25°C Power Dissipation B TA=70°C PD Junction and Storage Temperature Range TJ, TSTG Maximum -30 ±12 -4 -3.2 -27 1.4 0.
