AO4817

Dual P-Channel MOSFET

AO4817 Features

* VDS (V) = -30V ID = -8A (VGS = -20V) RDS(ON) < 18mΩ (VGS = -20V) RDS(ON) < 21mΩ (VGS = -10V) ESD Rating: 1.5KV HBM D1 S2 G2 S1 G1 1 2 3 4 8 7 6 5 D2 D2 D1 D1 D2 www.DataSheet4U.com G1 S1 G2 S2 SOIC-8 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol VDS Drain-Source Vol

AO4817 General Description

The AO4817 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications. The device is ESD protected. Standard Product AO4817 is Pb-free (meets ROHS & Sony 259 specification.

AO4817 Datasheet (132.84 KB)

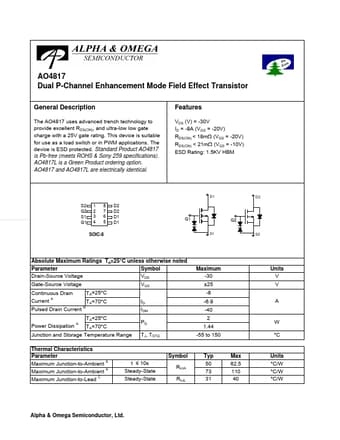

Preview of AO4817 PDF

Datasheet Details

Part number:

AO4817

Manufacturer:

Alpha & Omega Semiconductors

File Size:

132.84 KB

Description:

Dual p-channel mosfet.
