AO7417 - P-Channel MOSFET

Product Overview

📥 Download Datasheet

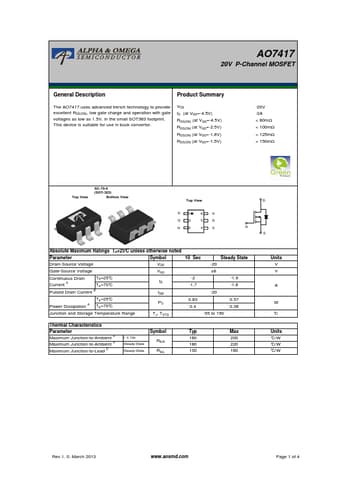

Datasheet preview – AO7417

Datasheet Details

Part number AO7417
Manufacturer Alpha & Omega Semiconductors
File Size 209.42 KB
Description P-Channel MOSFET
Datasheet download datasheet AO7417 Datasheet
Additional preview pages of the AO7417 datasheet.

Product details

Description

Product Summary The AO7417 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.5V, in the small SOT363 footprint.This device is suitable for use in buck convertor.VDS ID (at VGS=-4.5V) RDS(ON) (at VGS=-4.5V) RDS(ON) (at VGS=-2.5V) RDS(ON) (at VGS=-1.8V) RDS(ON) (at VGS=-1.5V) -20V -2A < 80mΩ < 100mΩ < 125mΩ < 150mΩ Top View SC-70-6 (SOT-323) Bottom View Top View D1 D2 G3 6D 5D 4S D G S Absolute Maximum Ratings TA
