AO7600 N- and P-Channel 20V MOSFET

VBsemi

Description

AO7600-VB www.VBsemi.com AO7600-VB Datasheet N-and P- Channel 20 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) N-Channel 20 P-Channel - 20 RDS(on) (.

📥 Download Datasheet

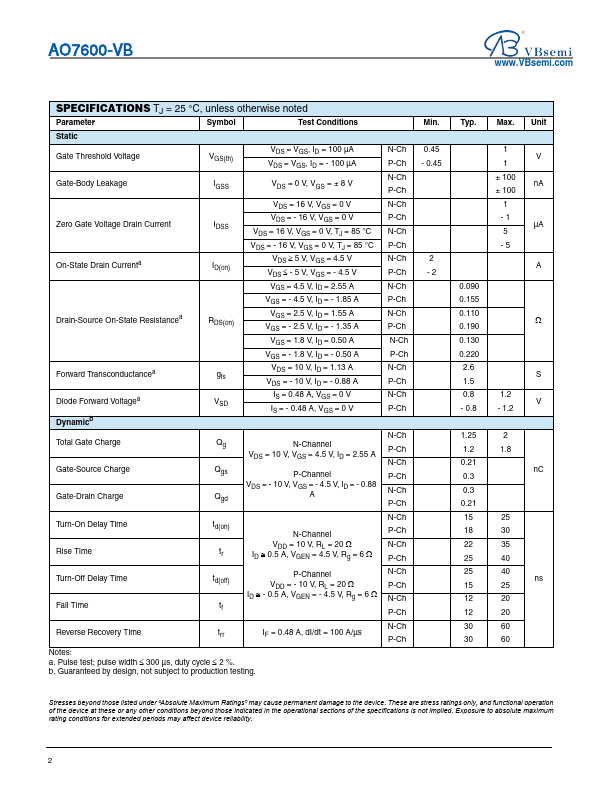

AO7600 Datasheet Preview — Preview of AO7600 PDF

Datasheet Specifications

Part number: AO7600
Manufacturer: VBsemi
File Size: 272.00 KB
Datasheet: AO7600-VBsemi.pdf
Description: N- and P-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFETs: 1.8 V Rated
* Thermally Enhanced SC-70 Package
* Fast Switching

Applications

* Load Switch for Portable Devices SOT-363 SC-70 (6-LEADS) S1 1 6 D1 G1 2 5 G2 D2 3 4 S2 Top View D1 S2 G2 G1 S1 N-Channel D2 P-Channel ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted N-Channel P-Channel Parameter Symbol 5 s Steady State 5 s Steady State Unit D
