AO7405, P-Channel MOSFET

AO7405 30V P-Channel MOSFET General .
The AO7405 uses advanced trench technology to provide excellent RDS(ON), low gate charge, and operation with gate voltages as low as 2.

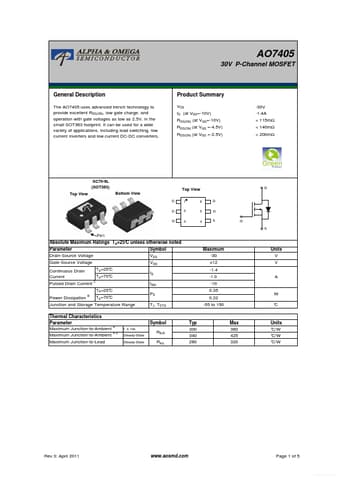

datasheet Preview Page 1 from Datasheet4u.com

AO7405_AlphaOmegaSemiconductors.pdf

AO7405 Datasheet Preview — Preview of AO7405 PDF

Datasheet Details

Part number:

AO7405

Manufacturer:

Alpha & Omega Semiconductors

File Size:

228.56 KB

Description:

P-Channel MOSFET

Applications

* including load switching, low current inverters and low current DC-DC converters. Product Summary VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS =-4.5V) RDS(ON) (at VGS =-2.5V) -30V -1.4A < 115mΩ < 140mΩ < 200mΩ SC70-6L (SOT363) Top View Bottom View D D G Top View 1 2 3 6 5 4 D D S G
