AO7400

N-Channel MOSFET

AO7400 General Description

The AO7400 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V, in the small SOT323 footprint. It can be used for a wide variety of applications, including load switching, low current inverters and low current DC-DC converters.

AO7400 Datasheet (212.67 KB)

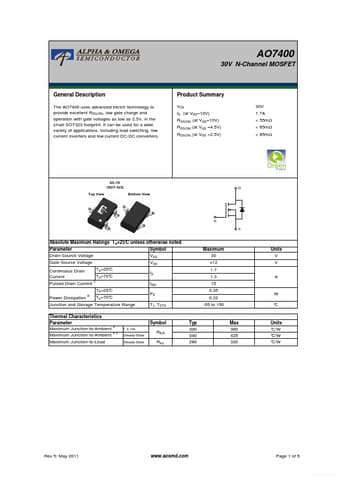

Preview of AO7400 PDF

Datasheet Details

Part number:

AO7400

Manufacturer:

Alpha & Omega Semiconductors

File Size:

212.67 KB

Description:

N-channel mosfet.
