AO7408 - N-Channel MOSFET

📥 Download Datasheet

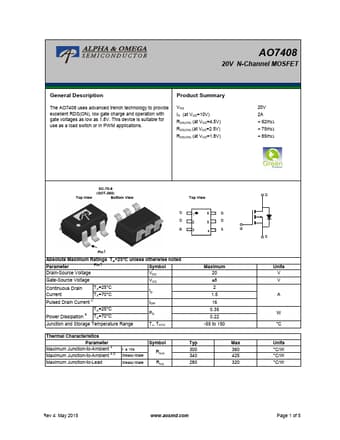

Preview of AO7408 PDF
datasheet Preview Page 2 datasheet Preview Page 3

AO7408 Product details

Description

Product Summary The AO7408 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V.This device is suitable for use as a load switch or in PWM applications.VDS ID (at VGS=10V) RDS(ON) (at VGS=4.5V) RDS(ON) (at VGS=2.5V) RDS(ON) (at VGS=1.8V) 20V 2A < 62mΩ < 75mΩ < 85mΩ SC-70-6 (SOT-363) Top View Bottom View Top View D1 D2 G3 6D 5D 4S G Pin1 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Pin1
