AON6426 30V N-Channel MOSFET

AON6426 Description

AON6426 30V N-Channel MOSFET General .
The AON6426 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).

AON6426 Applications

* Product Summary VDS (V) = 30V ID = 65A RDS(ON) < 5.5mW RDS(ON) < 7.5mW (VGS = 10V) (VGS = 10V) (VGS = 4.5V) 100% UIS Tested! 100% Rg Tested! Top View DFN5X6 Bottom View PIN1 Top View S1 S2 S3 G4 8D 7D 6D 5D G Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol

📥 Download Datasheet

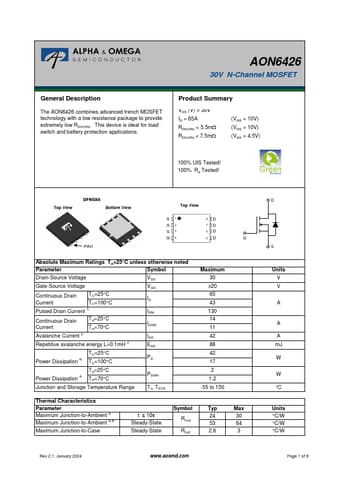

Preview of AON6426 PDF
datasheet Preview Page 2 datasheet Preview Page 3
