AOZ1014

5A Simple Buck Regulator

AOZ1014 Features

* 4.5V to 16V operating input voltage range

* 32 mΩ internal PFET switch for high efficiency: up to 95%

* Internal soft start

* Output voltage adjustable to 0.8V

* 5A continuous output current

* Fixed 500kHz PWM operation

* Cycle-by-cycle curre

AOZ1014 General Description

The AOZ1014 is a high efficiency, simple to use, 5A buck regulator. The AOZ1014 works from a 4.5V to 16V input voltage range, and provides up to 5A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1014 comes in SO-8 and DFN-8 packages and is rated over a -40°C to +.

AOZ1014 Datasheet (519.35 KB)

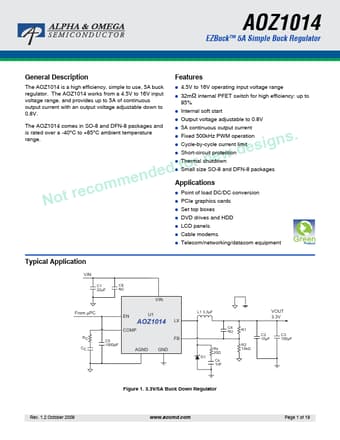

Preview of AOZ1014 PDF

Datasheet Details

Part number:

AOZ1014

Manufacturer:

Alpha & Omega Semiconductors

File Size:

519.35 KB

Description:

5a simple buck regulator.
