AOZ1016

2A Simple Buck Regulator

AOZ1016 Features

* 4.5V to 16V operating input voltage range

* 130mΩ internal PFET switch for high efficiency: up to 95%

* Internal Schottky diode

* Internal soft start

* Output voltage adjustable to 0.8V

* 2A continuous output current

* Fixed 500kHz PWM operation

* Cycle-by-cycle cur

AOZ1016 General Description

The AOZ1016 is a high efficiency, simple to use, 2A buck regulator. The AOZ1016 works from a 4.5V to 16V input voltage range, and provides up to 2A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1016 comes in an SO-8 package and is rated over a -40°C to +85°C amb.

AOZ1016 Datasheet (400.05 KB)

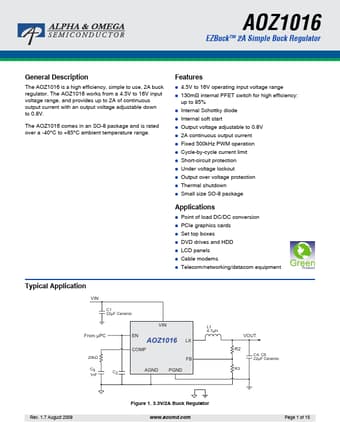

Preview of AOZ1016 PDF

Datasheet Details

Part number:

AOZ1016

Manufacturer:

Alpha & Omega Semiconductors

File Size:

400.05 KB

Description:

2a simple buck regulator.
