AOZ1334ADI-01 Datasheet - Alpha & Omega Semiconductors

AOZ1334ADI-01 - Single Channel Smart Load Switch

The AOZ1334ADI-01 is a single channel load switch with very low on-resistance in a small package.

It contains an n-channel MOSFET for up to VBIAS-1.5V input voltage operation and 10A current channel with 3.2V to 5.5V bias supply.

The load switch is controlled by a low voltage control signal through

AOZ1334ADI-01 Features

* 0.8V to VBIAS-1.5V input voltage range

* 10A continuous current

* Low RDS(ON) internal NFETs

* 5mΩ at VBIAS = 5V, VIN = 1.05V, TA = 85°C

* 35µA low quiescent current

* 10µs turn on rise time

* 3.2V to 5.5V bias voltage

* Integrated quick output discharge resisto

AOZ1334ADI-01-AlphaOmegaSemiconductors.pdf

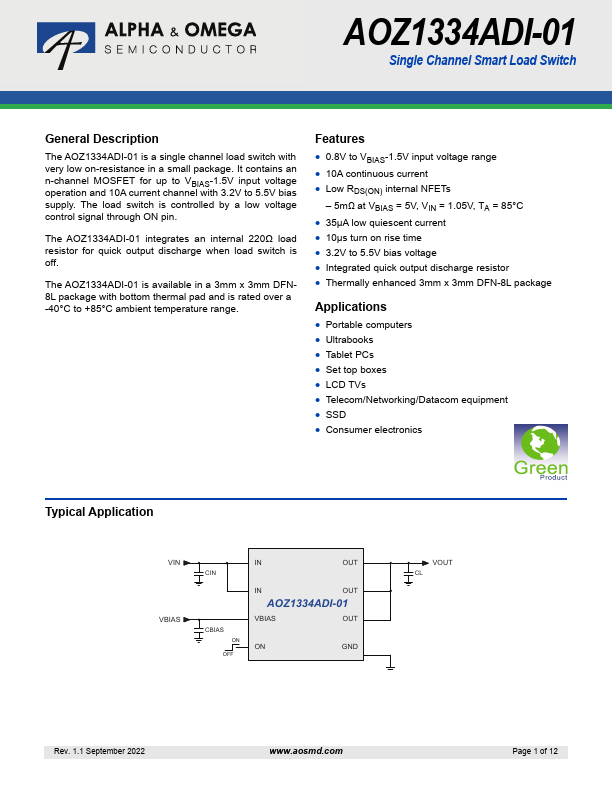

Preview of AOZ1334ADI-01 PDF

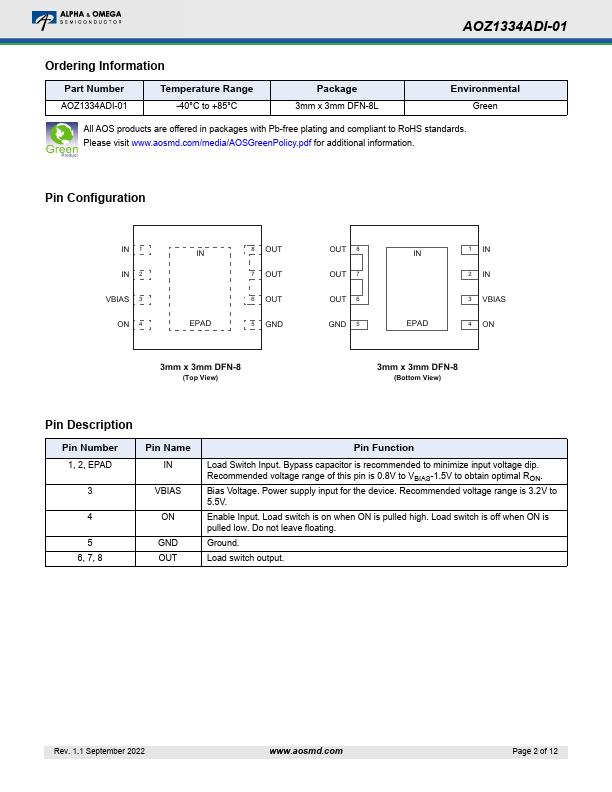

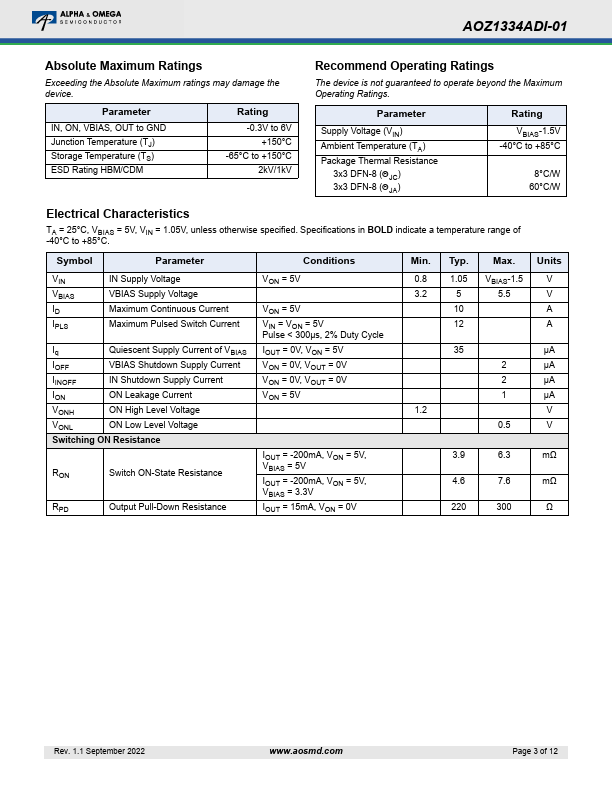

AOZ1334ADI-01 Datasheet Preview Page 2 AOZ1334ADI-01 Datasheet Preview Page 3

Datasheet Details

Part number:

AOZ1334ADI-01

Manufacturer:

Alpha & Omega Semiconductors

File Size:

1.01 MB

Description:

Single channel smart load switch.
