AOZ13058DI - 55V Smart Protection Switch

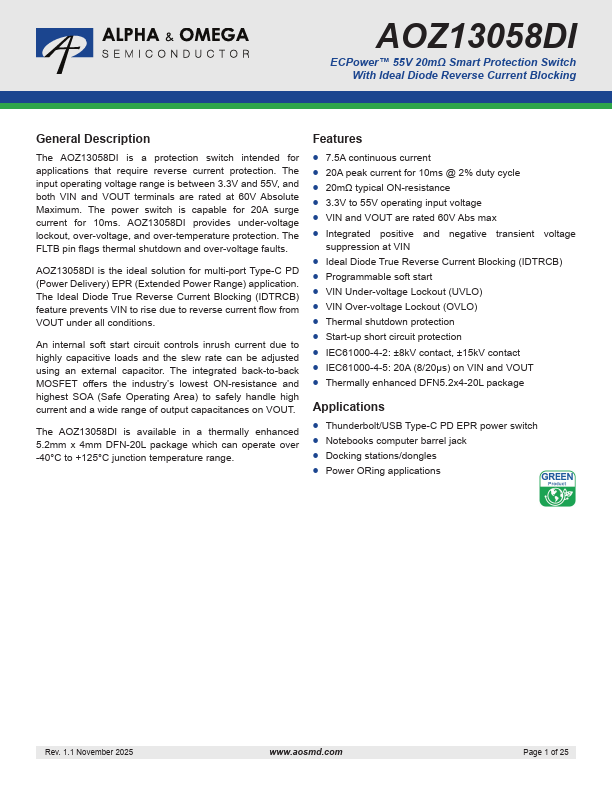

General Description

The AOZ13058DI is a protection switch intended for applications that require reverse current protection.

The input operating voltage range is between 3.3V and 55V, and both VIN and VOUT terminals are rated at 60V Absolute Maximum.

The power switch is capable for 20A surge current for 10ms.

Key Features

  • 7.5A continuous current.
  • 20A peak current for 10ms @ 2% duty cycle.
  • 20mΩ typical ON-resistance.
  • 3.3V to 55V operating input voltage.
  • VIN and VOUT are rated 60V Abs max.
  • Integrated positive and negative transient voltage suppression at VIN.
  • Ideal Diode True Reverse Current Blocking (IDTRCB).
  • Programmable soft start.
  • VIN Under-voltage Lockout (UVLO).
  • VIN Over-voltage Lockout (OVLO).
  • Thermal shutdown.
